Virtualization & Servers

VMware vSphere and ESXi, Veeam Backup, and notes for HPE and Dell hardware.

VMware vSphere & ESXi

Installing, upgrading and managing VMware vSphere and ESXi hosts.

VMware vSphere & ESXi

VMWare - Delete inaccessible datastore

Rename the store

Use the web client to rename each store and a DEL in front of the name

Access the shell of the appliance server and then the database

VMware vCenter Server 8.0.2.00300

Type: vCenter Server with an embedded Platform Services Controller

Connected to service
* List APIs: "help api list"
* List Plugins: "help pi list"
* Launch BASH: "shell"

Command> shell
Shell access is granted to root
root@vcenter [ ~ ]#
shell;/opt/vmware/vpostgres/current/bin/psql -d VCDB -U postgres

View the stores

This will give you the ID that is needed to clean up

SELECT * FROM vpx_entity;

Delete the store

This is the delete for cleaning up the inaccessible datastore

DELETE FROM vpx_ds_assignment WHERE ds_id=1015;
DELETE FROM vpx_datastore WHERE id=1015;
DELETE FROM vpx_vm_ds_space WHERE ds_id=1015;
DELETE from vpx_entity where id=1015;

Change the ID and then run the following

DELETE FROM vpx_ds_assignment WHERE ds_id=5015;DELETE FROM vpx_datastore WHERE id=5015;DELETE FROM vpx_vm_ds_space WHERE ds_id=5015;DELETE from vpx_entity where id=5015;

Restart the services

\q;service-control --stop --all && service-control --start --all
VMware vSphere & ESXi

VMWare - Install Windows 11 on vCenter 8 without TMP 2.0

Create a VMWare to host Windows 11 without having a virtual TMP or device installed.

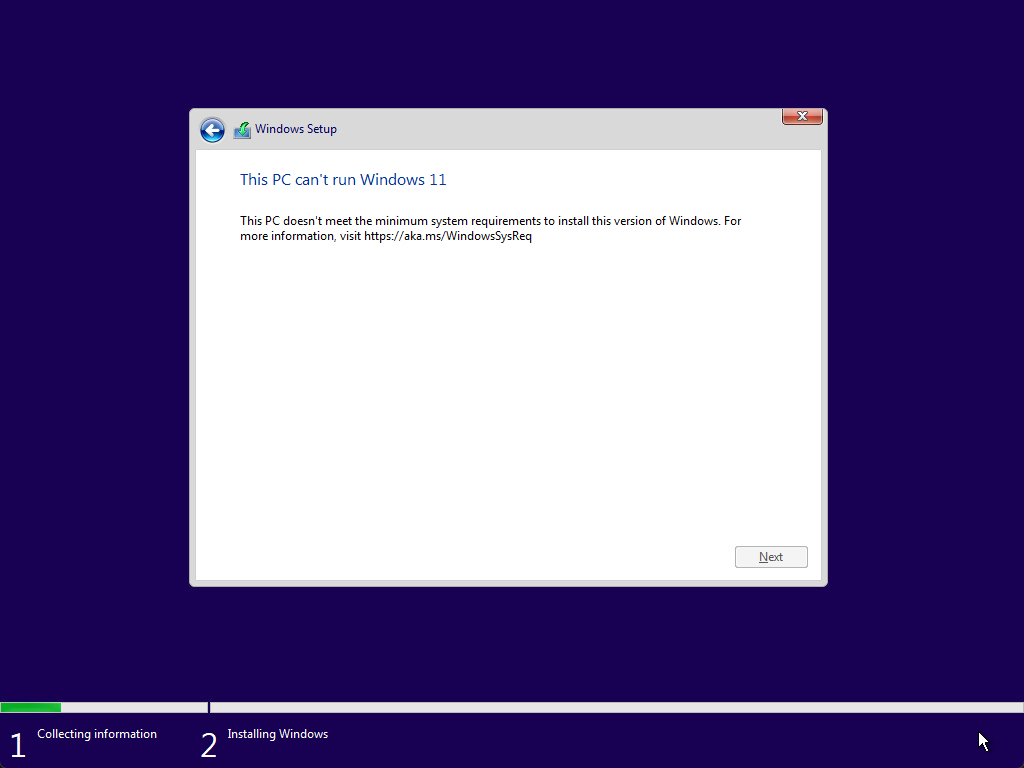

Once you are at this step you have to hit "Shift-F10" to open up the command prompt

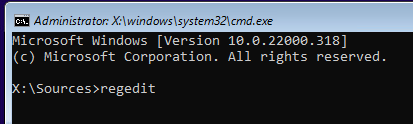

Once the command prompt window is opened type "regedit"

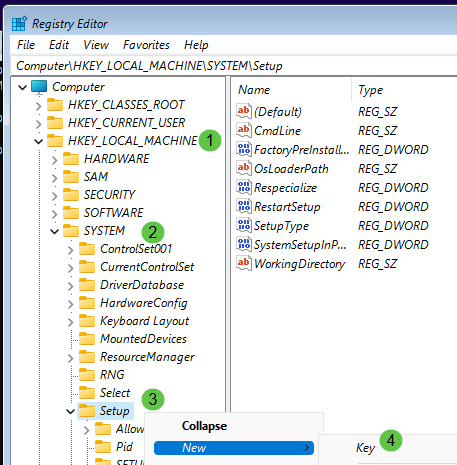

Once opened then navigate to "HKEY_LOCAL_MACHINE, SYSTEM, Setup" and then right-click and add a "New, Key"

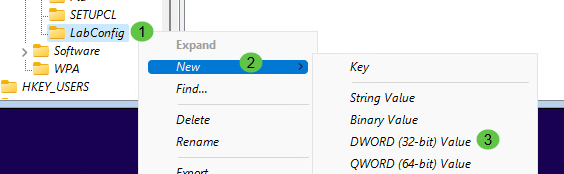

Add the key called "LabConfig" then right-click on the "LabConfig" and add a new "DWORD Value"

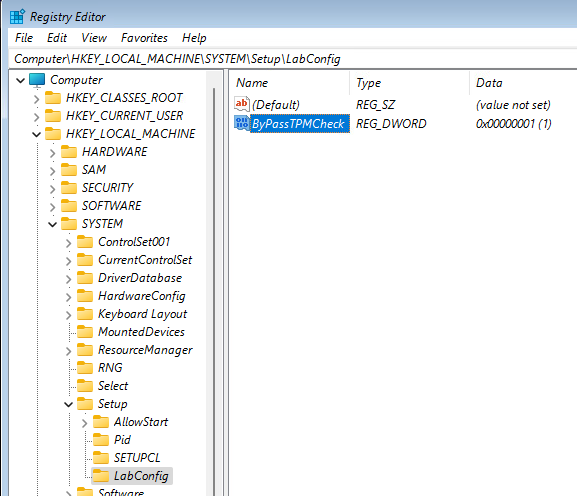

Add the new value called "ByPassTPMCheck" with a hexdecimal of "1"

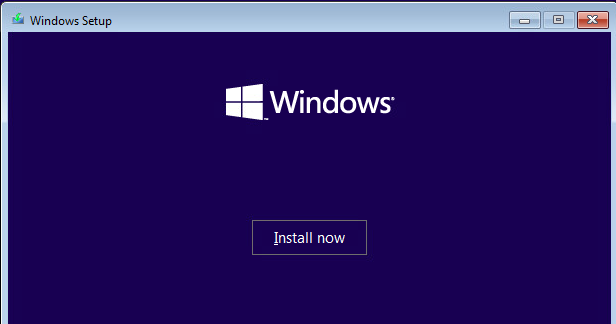

Close every window then click on "Install Now" but do not reboot or the new added key will be lost.


VMware vSphere & ESXi

VMWare - Copy and Paste from Console to VM

On any Powered Off VM, click the "Advanced Parameters" tab.

      1. Click filter icon of Attribute column. Search for 3 items' names, check if they already exist. If yes, edit their corresponding values. If not, add them from the textboxs above.
        Name Value
        isolation.tools.copy.disable FALSE
        isolation.tools.paste.disable FALSE
        isolation.tools.setGUIOptions.enable TRUE
      2. Click "OK".
  1. Power on the VM
  2. Then use Copy/Paste directly on Windows/Linux/any other platform.
VMware vSphere & ESXi

VMWare - Fix VMware View Horizon the redo log of .vmdk is corrupt


To disable the VAAI on the host follow the following steps:

  1. Open Vsphere Client and connect to Vcenter Server.
  2. Navigate to the ESXi Host and then Click on the Configuration Tab.
  3. Click on Advanced Settings.
  4. Click on DataMover.
  5. Change the value of DataMover.HardwareAcceleratedMove setting from 1 to 0.
  6. Change the value of DataMover.HardwareAcceleratedInit setting from 1 to 0.
  7. Click on VMFS3.
  8. Change the value of VMFS3.HardwareAcceleratedLocking setting from 1 to 0.
  9. Click Ok.
  10. Repeat the steps 1-9 on all ESXi Hosts in the cluster.

This should resolve the error once and for all. More info about VAAI can be found here.

VMware vSphere & ESXi

ESXi - UPS Nut Installation

Vmware ESXi NUT Client Installation and Configuration


Requirements

Download

Download the latest NutClient-ESXi-x.x.x-x.x.x-offline_bundle.zip package from: https://github.com/rgc2000/NutClient-ESXi/releases.

Install

esxcli software acceptance set --level=CommunitySupported

If you get the following error:

 [AcceptanceConfigError]
 Secure Boot enabled: Cannot change acceptance level to community.
 Please refer to the log file for more details.

You must disable Secure Boot in your computer BIOS and re-try the installation again.

esxcli software vib install -d /tmp/NutClient-ESXi-x.x.x-x.x.x-offline_bundle.zip

Installation Result

   Message: Operation finished successfully.

   Reboot Required: false

   VIBs Installed: Margar_bootbank_upsmon_x.x.x-x.x.x

   VIBs Removed:

   VIBs Skipped:

ESXi Configuration

Figure 1


NutUpsName: Name of the UPS on the NUT server (in the form of inverter_name@server_name or server_ip). Several inverters can be entered separated by a space. There will be no system shutdown until the last UPS still standing has given the shutdown command.

NutUser: Name of the NUT server login account

NutPassword: NUT Server Connection Account Password

NutFinalDelay: Seconds to wait after receiving the low battery event to shut down the system

NutSendMail: Set to 1 for the NUT client to send an e-mail to each important event of the UPS

NutMailTo: E-mail address to send UPS events to

Figure 2


Figure 3


Tips

esxcli software vib remove -n upsmon
esxcli software vib update -d /tmp/NutClient-ESXi-x.x.x-x.x.x-offline_bundle.zip
/opt/nut/sbin/upsmon -c fsd
2019-09-22T13:28:07Z upsmon[2111424]: Communications with UPS ups@UPSHOST established

Veeam Backup

Veeam Backup & Replication setup and fixes.

Veeam Backup

Veeam Upgrade

https://www.reddit.com/r/Veeam/comments/1b84qg4/migrate_11_to_12_on_new_hardware/

Or you can install the same v11 version on the new server, perform the config backup and restore first, then do an in place upgrade of the new server to v12.

Make sure you upgrade any VeeamONE and Enterprise Manager first.

Licensing, you can use the same license on both servers as long as its part of the migration process...only running the same license on two different VBR server in production at the same time is an issue.

Veeam Backup

Veeam Duplicate UUID

This is to bypass the UUID check if you have restored an old back to new hardware for example a laptop or physical PC.

REGEDIT

To ‘EnableSystemUuidFailover’ key should be added on each Veeam Agent host with non-unique ID.

This is the key enabling Veeam failover logic.

Name: EnableSystemUuidFailover
Path: HKLM\SOFTWARE\Veeam\
Type: DWORD
Value: 1

Then a unique ID should be assigned manually on each Agent station.
Another Veeam registry should be added on each host for it:

Name: SystemUuid
Path: HKLM\SOFTWARE\Veeam\
Type: REG_SZ
Value: {a custom UUID}

Custom UUID should correspond with the standard UUID format rules, brackets are required.

You can use some online generator for it (https://www.uuidgenerator.net/ ) or put some your own strings there.

Rescan protection group and you are deployed now

Disable "Windows recovery image file not found" warning

You can add AgentsDisableRECollectionWarning key here HKEY_LOCAL_MACHINE\SOFTWARE\Veeam\Veeam Backup and Replication to disable this warning.
Name: AgentsDisableRECollectionWarning
Path: HKLM\SOFTWARE\Veeam\
Type: DWORD
Value: 1

Server Hardware (HPE & Dell)

Firmware, management and driver notes for HPE and Dell hardware.

Server Hardware (HPE & Dell)

HPE - iLO4 Reflash after Not Responsive 380p Gen8

iLO 4 firmware in Direct Mode

Download Online ROM Flash Component for Linux - HPE Integrated Lights-Out 4 (CP######.scexe)

https://support.hpe.com/connect/s/product?language=en_US&ismnp=0&l5oid=5219994&cep=on&kmpmoid=5219994&tab=driversAndSoftware&driversAndSoftwareFilter=8000029

Attached is 2.82 version of iLO4 CP053894.scexe

Download Service Pack for ProLiant 2016+ (search on torrents) version 8.1 or use this ISO

Using HP USB Key Utility for Windows, we create a bootable flash drive from the SPP image.

For Windows use RUFUS https://rufus.ie/en/ to create a usb boot from the SPP .iso file

For Linux installation use https://unetbootin.github.io/ to create a usb boot

Copy CP053894.scexe to the finished flash drive in /hp/swpackages

Turn off the power, remove the case. On the system board, find the main dip switch (System maintenance switch) and turn the first (S1) switch to the ON position

Load the server from the SPP flash drive

Once on the image screen you need to select Interactive mode and when the main menu loads very slowly

press ctrl + alt + d + b + x to launch the console

Run:

You need to enter a simple magic command:

rmmod hpilo

then Run:

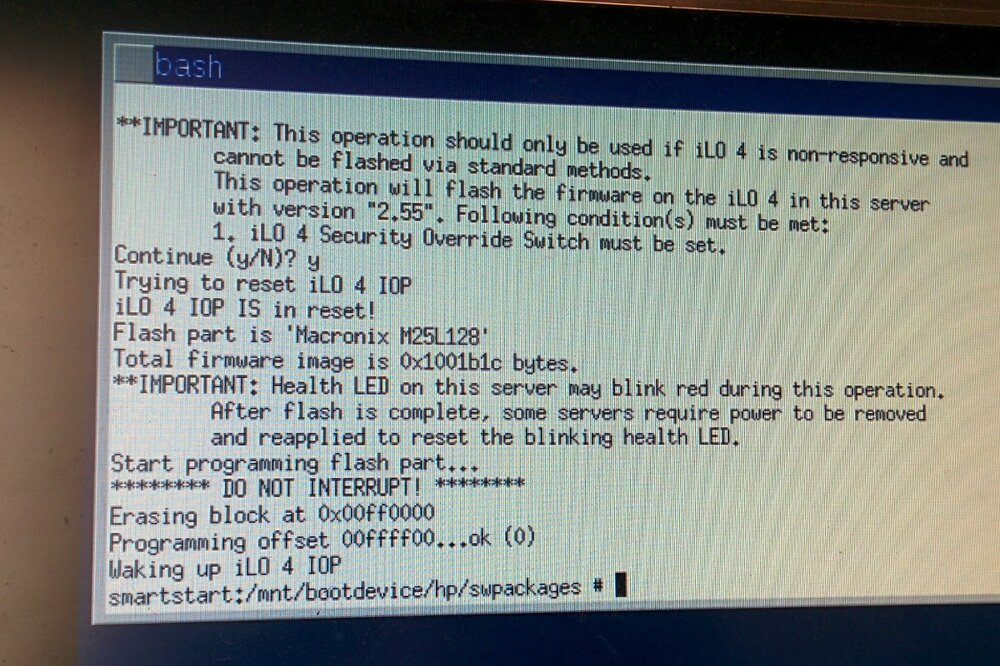

sh /mnt/bootdevice/hp/swpackages/CP027578.scexe --direct

After successful iLO flashing, turn off the power and return the first (S1) switch back (OFF).


Server Hardware (HPE & Dell)

HPE - ProLiant DL380p Gen8 GPU Install

Supported GPUs for the HP ProLiant DL380p Gen8 are limited by the server's specific PCIe risers, 225W power constraints, and passive cooling requirements. Official and community-tested options include the NVIDIA GRID K1, K2, Tesla P100, Quadro K6000, or consumer cards like the NVIDIA Tesla M4/M60

Because the DL380 G8 requires specific hardware components for proper installation, you will need to pay attention to the following details:



Server Hardware (HPE & Dell)

Dell - Hard Drive Capacity Difference Between Drives

The capacity difference between the two drives is caused by differing logical block/sector formatting or OEM vendor provisioning (HPA / Max LBA limits).

Even within the same Western Digital / Ultrastar DC HC520 12TB family, SAS drives are deployed with different low-level format structures:

1. Different Sector Formats (512e vs. 4Kn vs. Enterprise 520/528 Bytes)

2. OEM Firmware & Provisioning (HPA / Max LBA)

If one drive came from an OEM vendor (e.g., NetApp, EMC, Cisco, HPE) and the other is a generic Dell/retail drive, the OEM firmware may restrict the drive's total accessible Logical Block Addressing (LBA) count via Host Protected Area (HPA) or factory provisioning.

How to Fix / Match Them

To get disk 0:1:3 to match 0:1:4 at full capacity:

  1. Check the Sector Size:

    Boot into a Linux live environment (or pass the drive through via HBA/IT-mode) and run:

    Bash
    smartctl -i /dev/sdX
# or
sg_scan -i

    Check the Logical block size and Formatted with type 1/2/3 protection values.

  2. Low-Level Format to Standard 512e / 4Kn:

    Using the sg3_utils package in Linux, reformat the drive to standard 512-byte or 4096-byte sectors:

    Bash
    # Reformat to standard 512-byte sectors:
sg_format --format --size=512 /dev/sdX

    (Note: This is a low-level format that will erase all data on that specific disk and takes several hours for a 12TB drive.)

  3. Reset Max LBA (if sector size is already 512):

    ATA/SATA drives only. hdparm -N sends ATA commands, so on a SAS drive (like the HC520 SAS) it fails with 'SG_IO: bad/missing sense data, sb[]: 72 05 20 ...' (Illegal Request, invalid command) and prints bogus output like 'max sectors = 0/513, HPA is enabled'. Ignore that; SAS drives have no HPA. Use step 4 instead.

    If the drive was already 512 bytes, reset any HPA/LBA clamp:

    Bash
    hdparm -N /dev/sdX
# To restore full native capacity:
hdparm -N p[max_lba_value] /dev/sdX

  4. SAS drives: verify and fix capacity with sg3_utils

    Find the right device first (sg numbers can change after a reboot):

    lsscsi -g
# or
sg_scan -i

    Check capacity and protection:

    sg_readcap --long /dev/sgX

    A full 12TB HC520 at 512-byte sectors shows: Number of logical blocks=23437770752, Logical block length=512 bytes, prot_en=0, Device size 12.00 TB (about 11175.5 GB in the PERC).

    If the block count is short (sg_format keeps the existing block count when the sector size doesn't change), resize to the maximum. This takes seconds, not hours:

    sg_format --resize --count=-1 /dev/sgX

    If prot_en=1 (Type 1/2 protection still on, which PERC controllers often reject), do a full format that clears protection and sets max size:

    sg_format --format --size=512 --fmtpinfo=0 --count=-1 /dev/sgX

  5. Get the PERC to pick up the new size

    Power-cycle the server (or rescan), then in the PERC config utility or iDRAC storage page clear any foreign config on the drive and confirm it shows 11175.5 GB before adding it to a virtual disk.

  6. Optional: format to 4096-byte native sectors (4Kn)

    Before you start, check that everything using the drive supports 4Kn. Don't mix 4Kn and 512e drives in the same PERC virtual disk; to boot from a 4Kn disk the server must use UEFI, not BIOS mode; and some older OS and hypervisor versions don't support 4Kn disks.

    SAS drives (sg3_utils). This erases the whole drive and takes several hours on a 12TB disk:

    lsscsi -g        # confirm the right /dev/sgX first
sg_format --format --size=4096 --fmtpinfo=0 /dev/sgX

    When the sector size changes, sg_format sets the block count to the drive's maximum on its own, so --count isn't needed.

    Verify:

    sg_readcap --long /dev/sgX

    A full 12TB HC520 at 4Kn shows: Logical block length=4096 bytes, Number of logical blocks=2929721344, prot_en=0, Device size 12.00 TB (the same total size as 512e, just one-eighth the number of blocks).

    SATA drives: sg_format doesn't apply. If the drive's firmware supports changing the sector size, use:

    hdparm -I /dev/sdX | grep -i 'sector size'
hdparm --set-sector-size 4096 --please-destroy-my-drive /dev/sdX

    If hdparm says it isn't supported, the drive's sector size can't be changed this way.

    Then do step 5 again (power-cycle, clear foreign config, confirm the size in the PERC).

  7. Check for and handle bad sectors (SAS)

    A full sg_format already certifies every sector and remaps bad ones to spare sectors (reallocation). Remapped sectors go on the drive's grown defect list. They can't be recovered, but they stop causing errors.

    Keep certification on during the format (it's the default, so don't add --ffmt or --dcrt):

    sg_format --format --size=4096 --fmtpinfo=0 /dev/sgX

    After the format, check the grown defect list and error counters:

    sg_reassign --grown /dev/sgX
smartctl -a /dev/sgX

    In the smartctl output, check 'Elements in grown defect list' and the read/write 'Total uncorrected errors' values.

    Optional full read test (more than 20 hours on a 12TB drive):

    smartctl -t long /dev/sgX
smartctl -l selftest /dev/sgX   # check the result after it finishes

    To remap one specific bad LBA by hand (this erases the data in that block):

    sg_reassign --address=<LBA> /dev/sgX

    Rule of thumb: a few dozen grown defects that stay the same over time is fine. If the count keeps going up, or there are any uncorrected errors, the drive is failing and should be replaced instead of reused.

Once reformatted, the Dell PERC controller will detect 0:1:3 at the full 11175.5 GB size.

Server Hardware (HPE & Dell)

DELL - XPS Killer Wifi

I was only getting 1.5mb transfer and 60mb web download

WARNING --  Changing the registry can break your machine if done wrong!!!  Do so at your own risk!

I had (sounds like) the same WiFi issues you are having.  I was able to "fix" it with a registry hack.  Go to this key Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Power\PowerSettings\19cbb8fa-5279-450e-9fac-8a3d5fedd0c1 and create a value (if not there) Attributes with a DWORD value of 2.

Go a little further down, under the above key  to Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Power\PowerSettings\19cbb8fa-5279-450e-9fac-8a3d5fedd0c1\12bbebe6-58d6-4636-95bb-3217ef867c1a\DefaultPowerSchemeValues\381b4222-f694-41f0-9685-ff5bb260df2e and add the same Attributes value here or set it to 2 if it's already there.  Under this key, change the DCSettingIndex to 0 (zero) to match the ACSettingIndex.

This makes the WiFi card use full power on battery under the Balanced Power Plan which is the default plan.

Also mentioned in my previous posts was to remove all the Killer software and use the Intel drivers instead.  The current version works fine.  Of course download the Intel drivers before removing the Killer stuff.     This did not fix the issue by itself but trust the Intel drivers more.
